Single Shaft Plastic shredder

Features:

Features
1. More efficient
It has high efficiency shredding ability, provides large shear force, and ensures high crushing output.

2. Easy maintenance
The fixed blades can be adjusted to maintain the gap with the Rotating Blades. Change screen mesh easily.

3. High torque:
Dual-speed hydraulic system, equipped with air cooling device. Smooth material pushing to ensure uniform crushing speed.

4. High safety grade:
Independent control electric box fixed with Siemens PLC and electric components.


Product Detail

Product Tags

Description

This shredder is suitable for general plastics such as injection molding, extrusion, and blown film, head blocks, composite cables, aluminum cans, and wood, etc.
The single-shaft shredder is a medium-to-low speed, high-torque crushing equipment with a wide range of applications. The shredded materials can be sold as raw materials, or processed and produced by other equipment to produce other products. Depending on the type of shredded material, the production capacity of this ZGSM series of single-shaft shredders is approximately between 300 kg/h and 5000 kg/h.

discribe

Specifications

Model

ZGSM-600

ZGSM-800

ZGSM-1200

ZGSM-1500

Power

18.5KW

37KW

55KW

75KW

Hydraulic Motor Power

2.25KW

3.75KW

5.5KW

5.5KW

Rotor Diameter

Φ224

Φ382

Φ390

Φ390

Rotor Working Length

600mm

800mm

1200mm

1400mm

Rotor Speed

80RPM

80RPM

80RPM

80RPM

Pusher Stroke

500mm

815mm

815mm

815mm

Fixed Blades

2+2

2+2

3+3

3+3

Rotating Blades

23+4

35+4

55+4

78+4

Screen Diameter

Φ40

Φ40

Φ40

Φ40

Discharge Height

487mm

565mm

565mm

565mm

Weight

1605Kg

4051Kg

5050Kg

5858kg

Hopper Inlet Size L*W*H mm

1200*1090

1500*1417

1900*1417

2100*1400

Dimensions        L*W*H mm

1820*1300*1730

2800*1800*2080

2800*2500*2130

2800*1750*2130



Shredder’s Applications

sa4

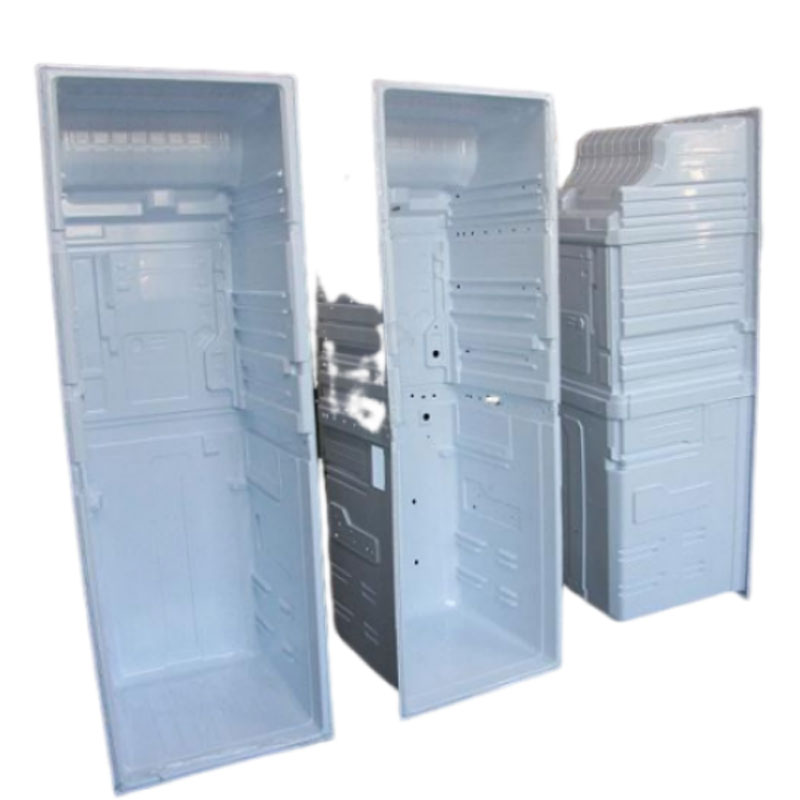

White Appliances Refrigerator

sa6

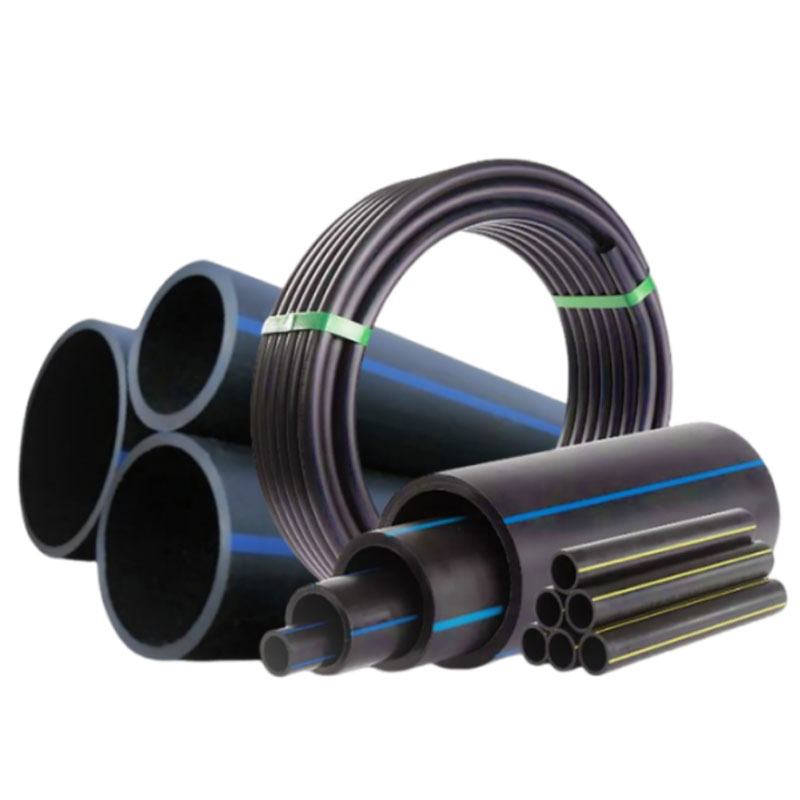

Large plastic pipe

sa1

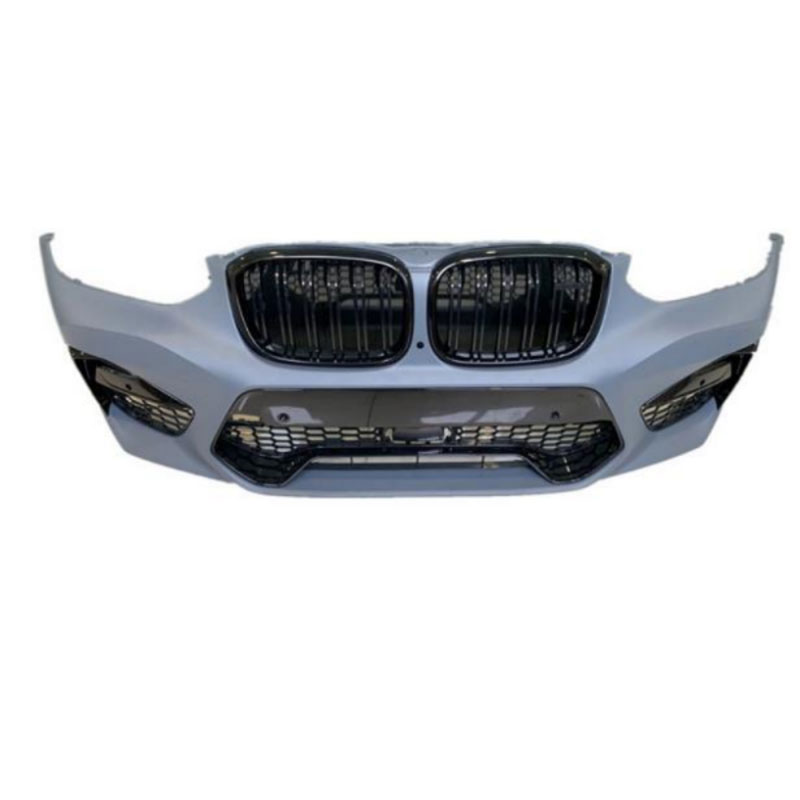

Large Automotive Parts Bumper

sa5

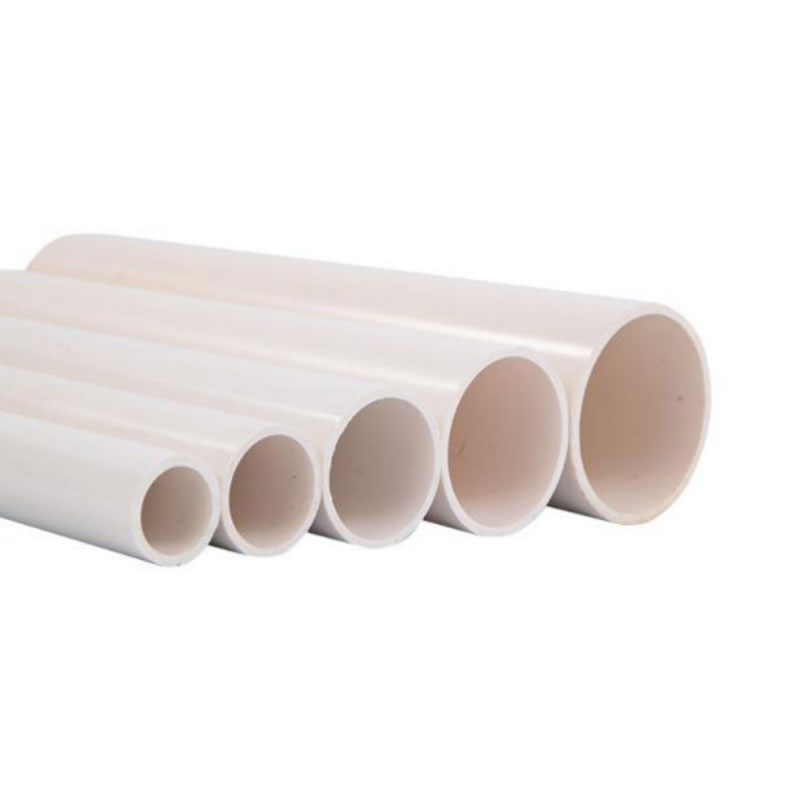

Large plastic pipe

sa2

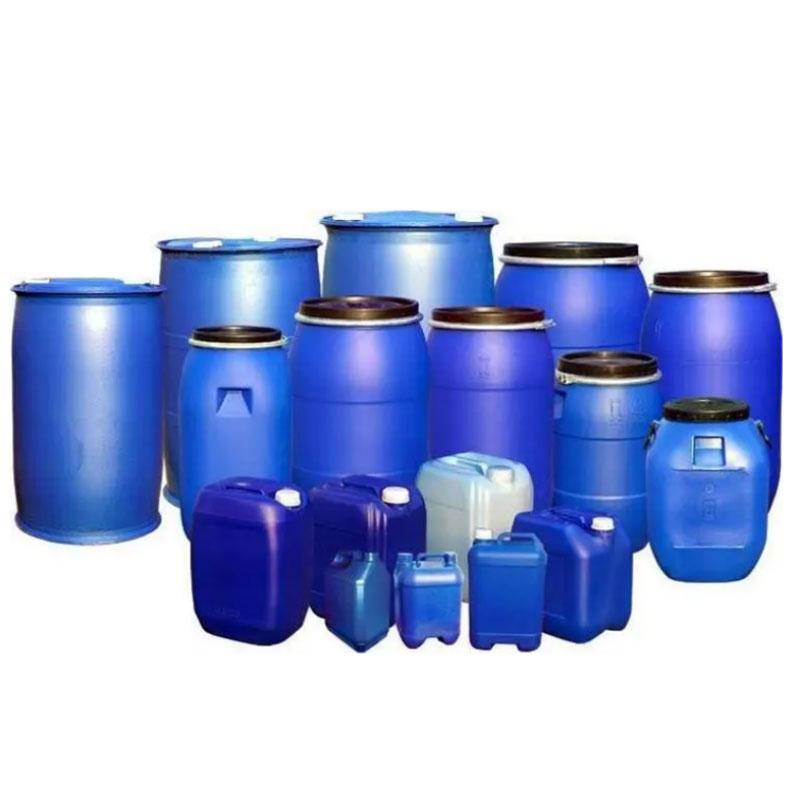

Large plastic bucket

sa3

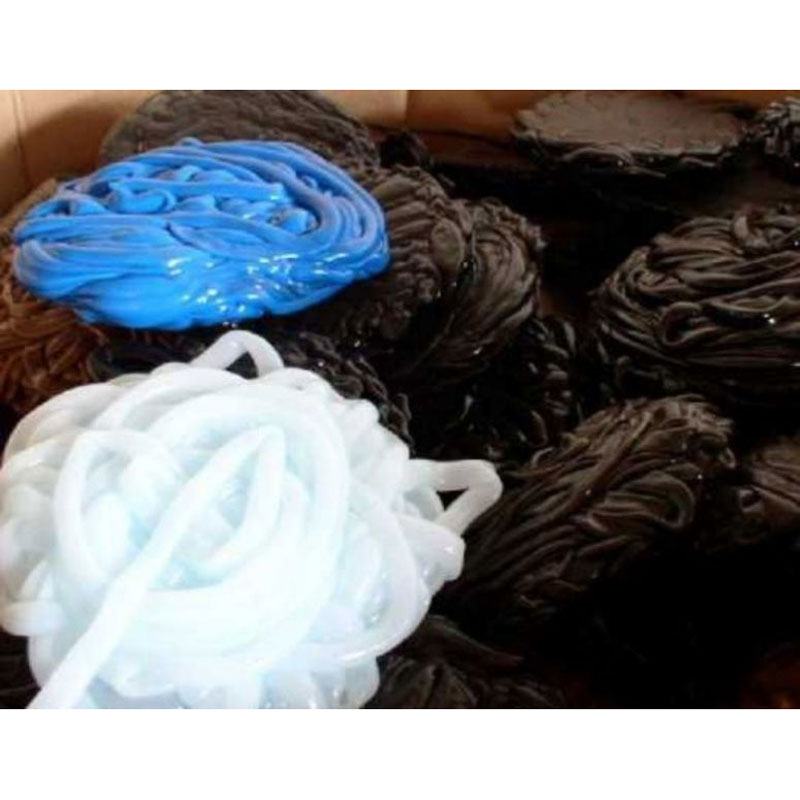

PVC/TPU/TPE rubber waste

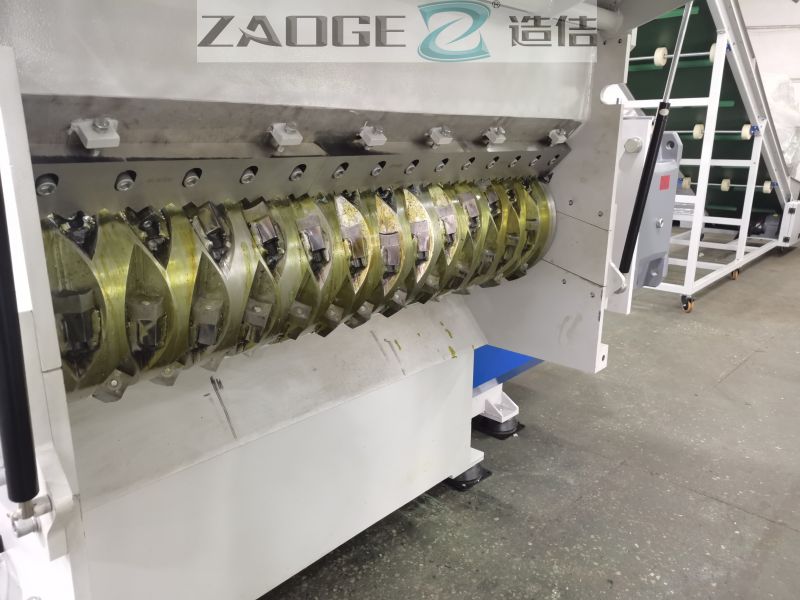

More details

details1
details2

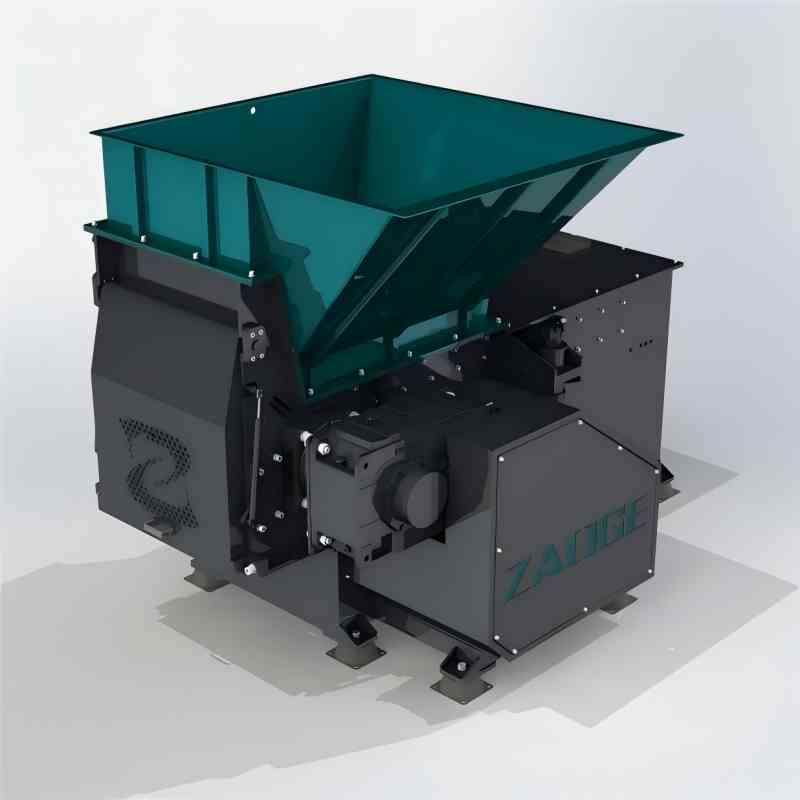

discribe
3

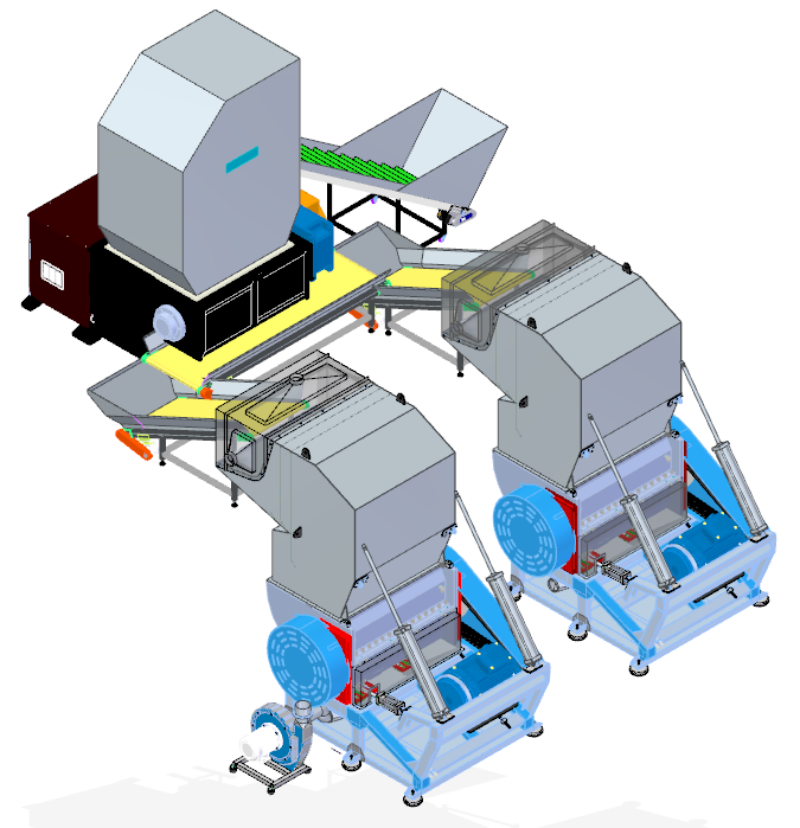

shejitu
