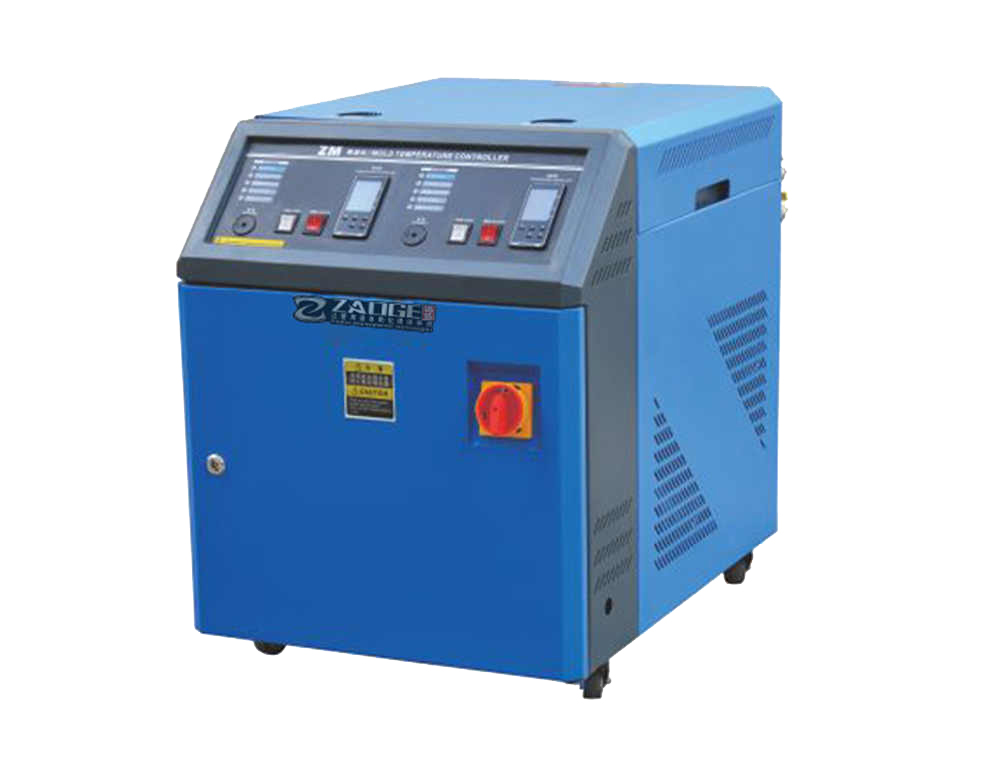

Water Mold Temperature Controller

Features:

● Adopting a fully digital P.I.D segmented temperature control system, the mold temperature can be maintained stable under any operation state, and the temperature control accuracy can reach ±1℃.
● Equipped with multiple safety devices, the machine can automatically detect abnormalities and indicate the abnormal conditions with indicator lights when a failure occurs.
● Direct cooling with excellent cooling effect, and equipped with an automatic direct water replenishment device, which can quickly cool down to the set temperature.
● The interior is made of stainless steel and is explosion-proof under high pressure.
● The appearance design is beautiful and generous, easy to disassemble, and convenient for maintenance.

Send email to us Inquiry Now

Product Detail

Product Tags

Description

Water type mold temperature machine is a temperature control equipment that uses water as a heat transfer medium. It is mainly used in the processing and production of materials such as plastics and rubber to ensure the quality and efficiency of the products by controlling the temperature of the mold. The water type mold temperature machine consists of a water tank, pump, electric heater, temperature controller, sensor, valve, cooler, etc. It has the advantages of high thermal conductivity efficiency, low pollution, easy availability, and low operating costs. At the same time, according to different usage requirements, water type mold temperature machines can also be divided into standard and high temperature types, which can usually be controlled at 120-160℃ and above 180℃.

Description

More Details

Water Mold Temperature Controller-01 (2)

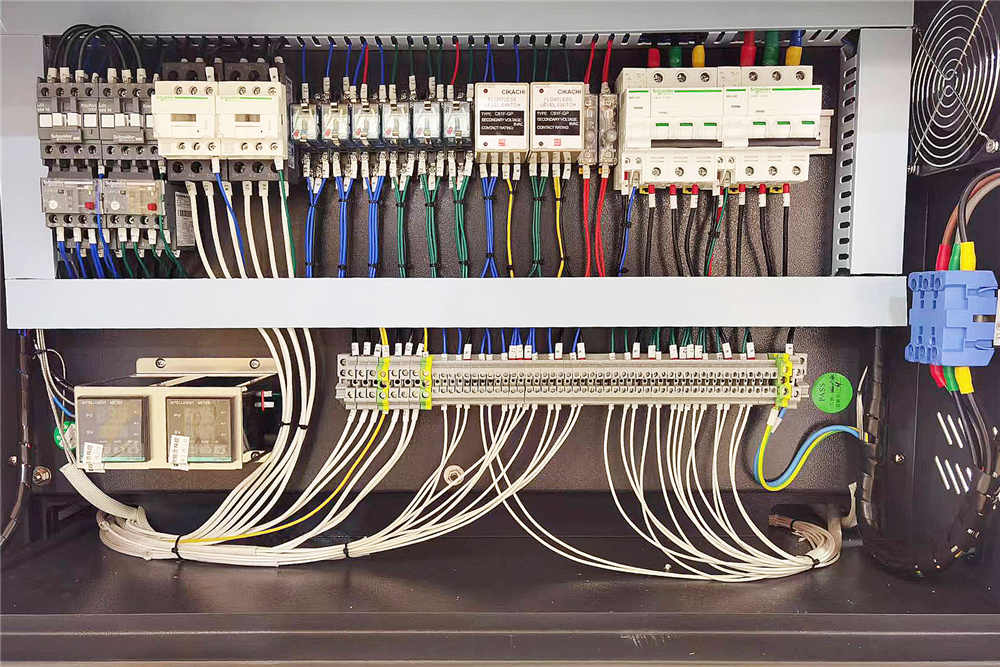

Safety Devices

The machine is equipped with various safety protection devices, including overload protection, over current protection, high and low voltage protection, temperature protection, flow protection, and insulation protection. These protection devices can effectively ensure the safety and reliability of the mold temperature machine and also ensure the normal production process. When using the mold temperature machine, regular maintenance is required to ensure its normal operation and efficient work.

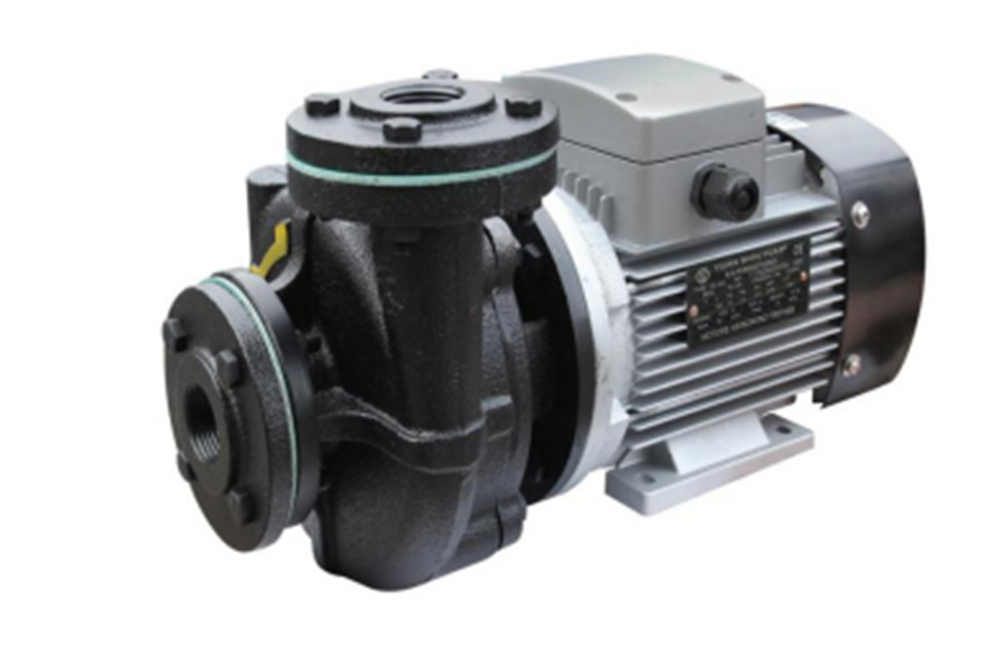

The pump is one of the core components of the mold temperature machine for controlling mold temperature. The two common pump types are centrifugal pumps and gear pumps, with centrifugal pumps being the most commonly used due to their simple structure and large flow rate. The machine uses a Yuan Shin pump from Taiwan, which is energy-efficient, reliable, and low-cost to maintain, and can meet the needs of different industries to improve production efficiency and reduce costs.

Water Mold Temperature Controller-01 (3)

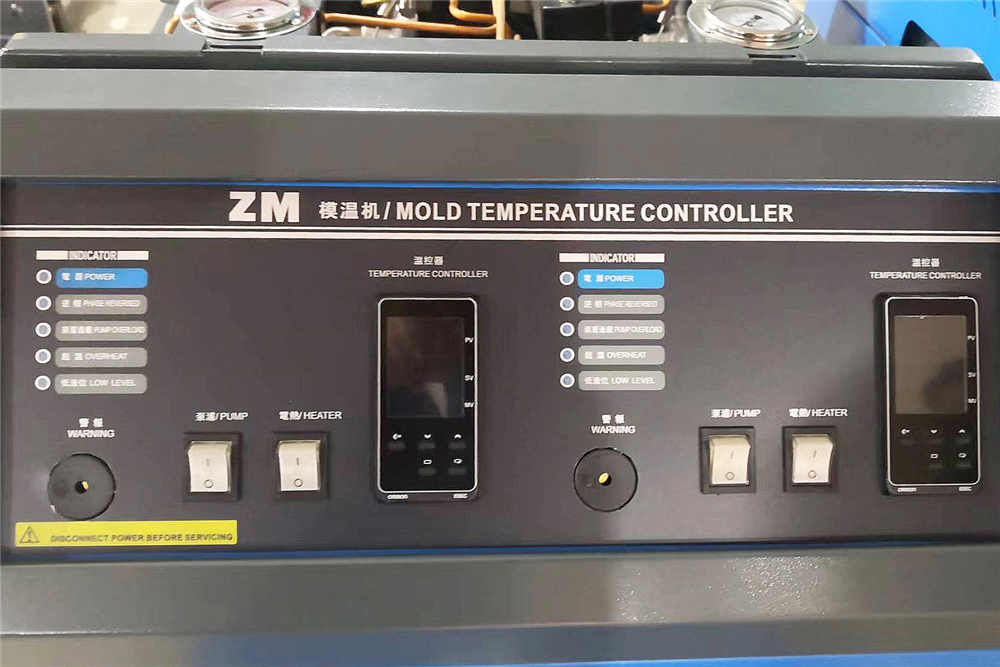

Water Mold Temperature Controller-01 (1)

Temperature Controllers

The use of temperature controllers from brands such as Bongard and Omron can improve the automation level and production efficiency of the equipment. They have high precision and stability, are easy to operate, and have multiple protection functions. In addition, some temperature controllers also support remote monitoring and control, which facilitates remote management and maintenance of the equipment, and helps to improve product quality and reduce production costs.

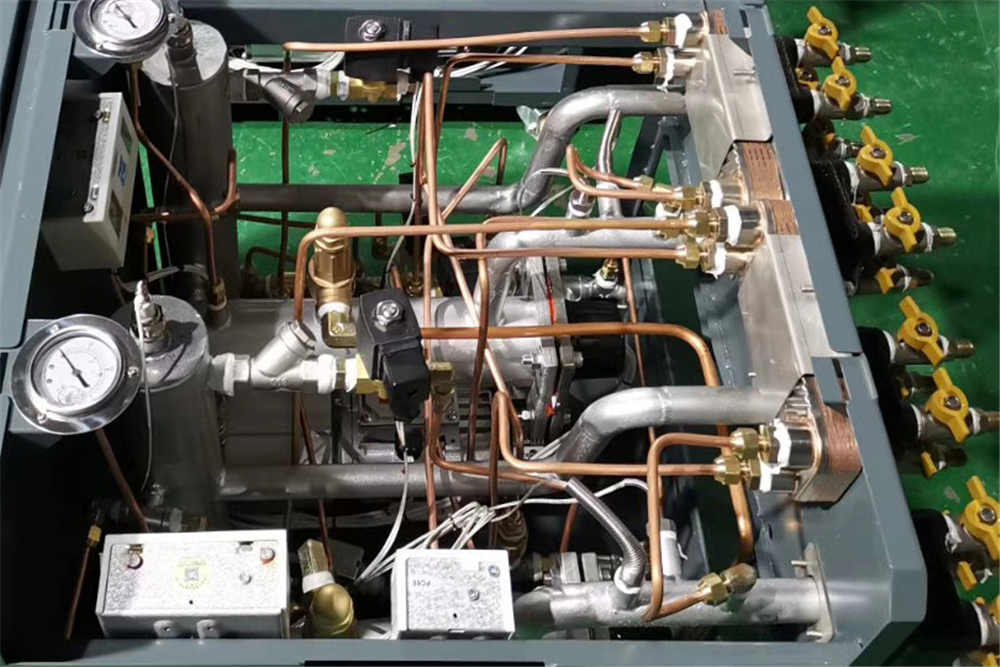

The water circuit of a water type mold temperature machine includes a tank, pump, pipes, heater, cooler, and copper fittings, which provide good corrosion resistance and thermal conductivity. The pump sends heated water to the mold, while the pipes convey it. The heater heats the water, and the cooler cools it and returns it to the tank.

Water Mold Temperature Controller-01 (4)

Granulator’s Applications

AC Power Supply Injection Molding

Automotive Parts Injection Molding

Communications Electronics Products

Cosmetic Bottleswatering Cansplastic Condiment Bottles

Household Electrical Appliances

Injection Molded For Helmets And Suitcases

Medical And Cosmetic Applications

Pump Dispenser

Specifications

water mold temperature controller
mode	ZG-FST-6W	ZG-FST-6D	ZG-FST-9W	ZG-FST-9D	ZG-FST-12W	ZG-FST-24W
temperature control range	120℃ clear water
electric heating	6	6×2	9	9×2	12	24
cooling method	indirect cooling
pump power	0.37	0.37×2	0.75	0.75×2	1.5	2.2
Heating capacity（KW）	6	9	12	6	9	12
Heating capacity	0.37	0.37	0.75	0.37	0.37	0.75
Pump flow rate（KW）	80	80	110	80	80	110
Pump pressure（KG/CM）	3.0	3.0	3.5	3.5	3.5	4.5
Cooling water pipe diameter （KG/CM）	1/2	1/2	1/2	1/2	1/2	1/2
Heat transfer medium pipe diameter（pipe/inch）	1/2×4	1/2×6	1/2×8	1/2×4	1/2×6	1/2×8
Dimensions（MM）	650×340×580	750×400×700	750×400×700	650×340×580	750×400×700	750×400×700
Weight （KG）	54	72	90	54	72	90
